Vertical Horizontal EE40 42 Hf Power Transformer , UEWF LITZ WIRE High Isolation Transformer

Name: Vertical Horizontal EE40 42 Hf Power Transformer UEWF LITZ WIRE High Isolation Transformer
Brand: Greenfair
Price: 1 USD

Vertical Horizontal EE40 42 Hf Power Transformer , UEWF LITZ WIRE High Isolation Transformer Manufactures

Brand Name : Greenfair

Model Number : EE series

Certification : CE, UL, ISO9001

Place of Origin : China

MOQ : 1000pcs

Packaging Details : carton box

type : EE42, EE40 transformer

frequency : high frequency

wire : UEWF LITZ WIRE

bobbin : Phenolic

core : EE42/42/20 TP4

Structure : Horizontal

size : big

power : 10~300W

Contact Now

EE series vertical and horizontal EE40,42, UEWF LITZ WIRE High frequency Welding transformers

Features:
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. High-temperature resistant
6. Operating temperature -40°C to +125°C
7. Power range 10w-300w

EE Transformer
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: EE5, EE9, EE10, EE11, EE13, EE14, EE16, EE18, EE19, EE20, EE22, EE25, EE26, EE28, EE30, EE31, EE32, EE33, EE36, EE37, EE38, EE40, EE42, EE45, EE55, EE58, EE65, EE66, EE70, EE71, EE79, EE99
Usage: High Frequency
Coil Structure: Toroidal
Coil Number: Autotransformer
color: yellow
size: horizontal
type: EE,EI ,EC,PQ,EFD,EPC,UU,R,RH,DR
Core grade: PC40, 3C90,TP4
Bobbin material: Phenolic

Application:
Power supply Driver
Lighting appliance
Communication equipment
LCD Power Supply

Converter and inverter

Vertical Horizontal EE40 42 Hf Power Transformer , UEWF LITZ WIRE High Isolation Transformer

WINDING PARAMETER:
WINDING ORDER	MATERIAL SPEC.	S--F	TURNS	WINDING FASHION	ISOLATION BETWEEN WINDING

N1	UEWF LITZ Φ0.14mm*90P	1---12	45	closed	1mil27.0mm2TS

ELECTRICAL CHARACTERISTIC:
NO.	ITEM	MEASURE POINT	TECHNICAL DATA	REMARK
1	IND	1---12	550uH±15%	@1KHZ/0.25V
2	DCR	1---12	95mΩ MAX	@25℃
3	HI-POT	WINDING-CORE	600VAC	@50HZ 3mA 3S

MATERIAL LIST:
NO.	MATERIAL NAME	MATERIAL SPEC.	PROVIDER	UL·NO
1	CORE	EE42/42/20 TP4 EE42/42/20 6H20	TDG HOLDING CO.,LTD FDK ELECTRONIC CO.,LTD OR EQUIVALENT
2	BOBBIN	PHENOLIC UL94V-0 150℃	CHANG CHUN PLASTICS CO.,LTD.OR EQUIVALENT	E59481
3	WIRE	MW-79C TYPE: UEWF 155℃	TAI-I ELECTRIC WIRE &CABLE CO.,LTD HUI ZHOU CITY DENGGAODA ELECTROTECH CO.,LTD OR EQUIVALENT	E85640 E253843
4	TAPE	CT-280 130℃	YAHUA PRESSURE SENSITIVE GLUE CO.,LTD OR EQUIVALENT	E165111
5	GLUE	2006A/B	DONGNUAN CITY EATTO ELECTRONICS MATERIALCO.,LTD OR EQUIVALENT
6	VARNISH	8562(a) 155℃	HENG CHANG GREAT HOLDING CO.,LTD OR EQUIVALENT	E200154

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range		Humidity range		Standard test conditions
Operating temperature*	Storage temperature	Operating temperature**	Storage temperature**	Operating temperature**	Storage temperature**
( ℃)	( ℃)	( % RH)	( % RH)	( ℃)	( % RH)
-30 to +120	-40 to +80	10 to +95	10 to +95	25 ± 10	25 to +75

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing

Vertical Horizontal EE40 42 Hf Power Transformer , UEWF LITZ WIRE High Isolation Transformer

Product Tags:

hf power transformer

high frequency power transformer

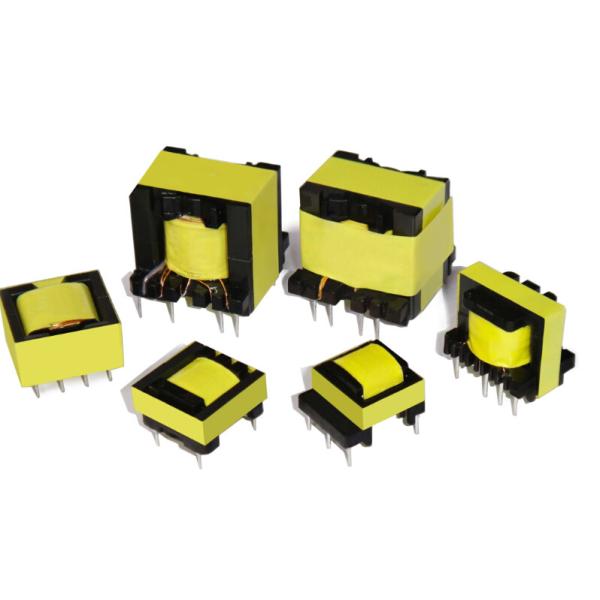

Vertical Horizontal EE40 42 Hf Power Transformer , UEWF LITZ WIRE High Isolation Transformer Images
